Three Station Vacuum Forming Machine will be separated into 5 parts,then it will be connected to complete the whole manufacturing task.

(The used data is for reference)

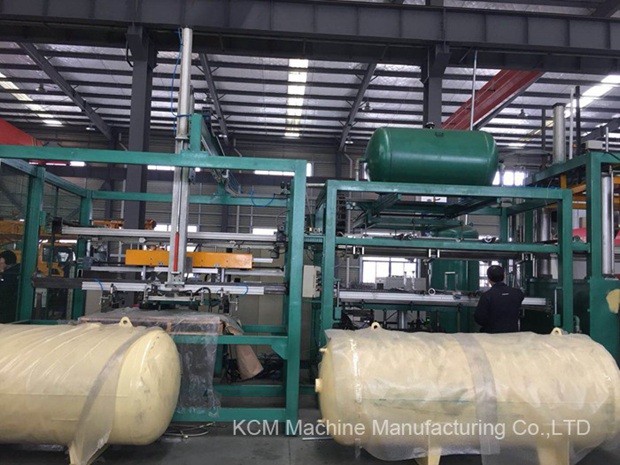

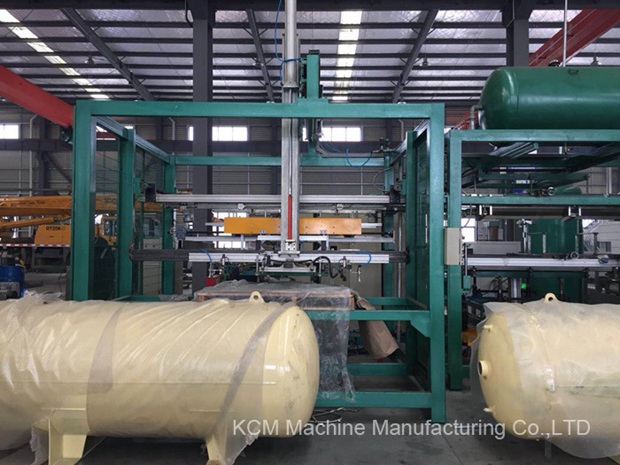

1st Part: Feeding Machine & Heating Machine

             Dimension: 6500mm*2100mm*3000mm

             Weight: 4000KG

2nd Part: Press Frame

              Dimension: 3100mm*2100mm*2300mm

              Weight: 2000KG

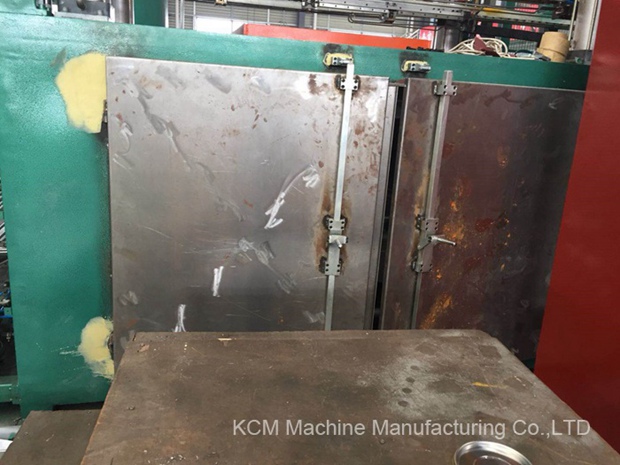

3rd Part: Vacuum Box

             Dimension: 3100mm*2100mm*2200mm

             Weight: 3000KG

4th Part: Blanking Machine

             Dimension: 2900mm*2100mm*3000mm

             Weight: 1000KG

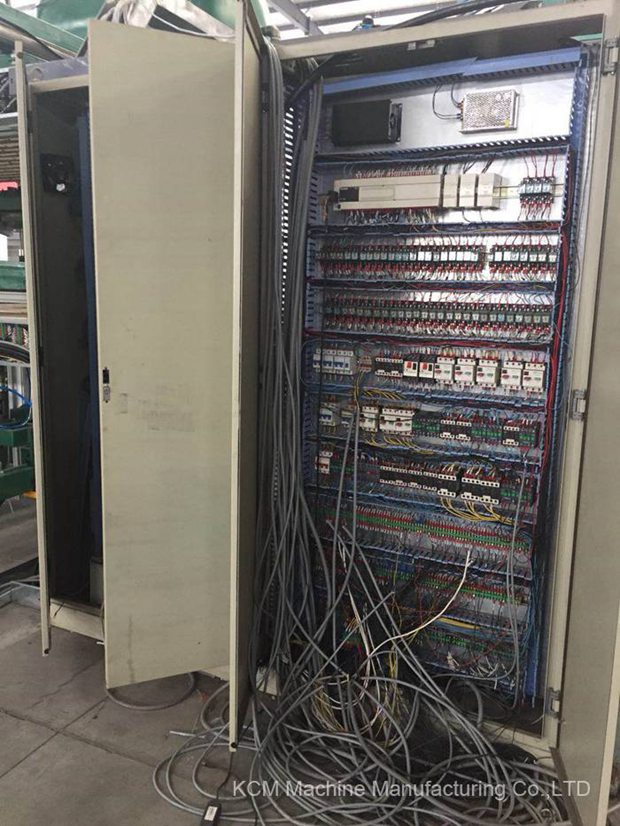

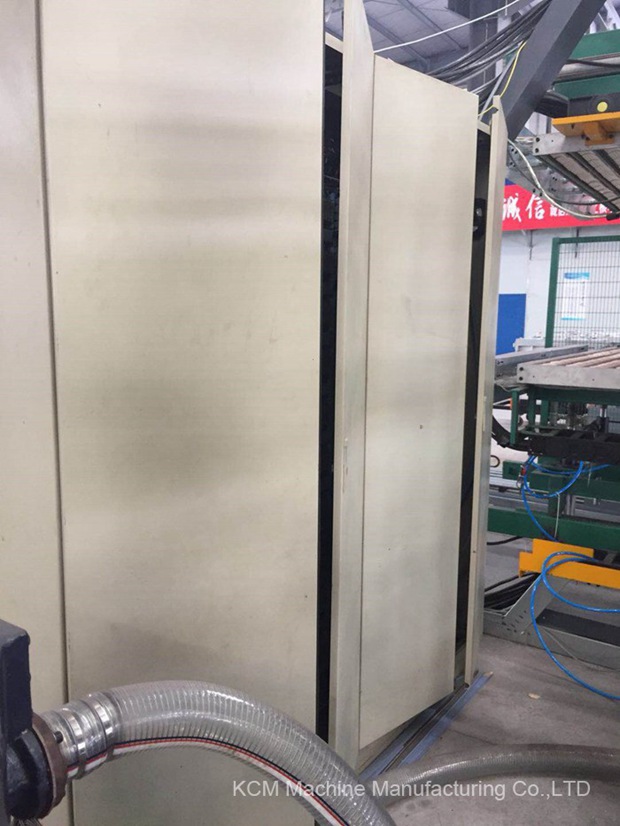

5th Part: Electrical Cabinet

             Dimension: 2100mm*600mm*2200mm

             Weight: 800KG
