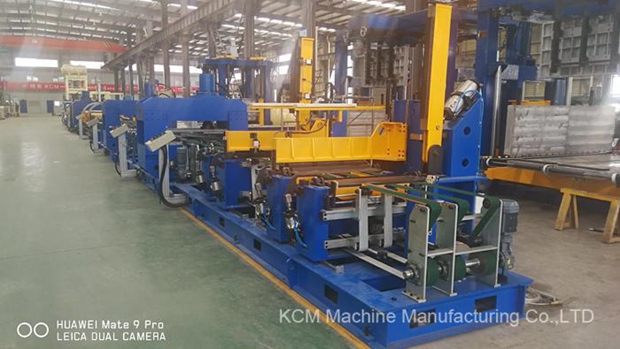

Due to outer O- shell forming line mainly composed of Automatic Loading Machine, Punching Machine--1, punching machine--2, 180 Degree Rotation Turn Over, Roller Forming Machine, Punching for Compressor Window machine, Flanging for Compressor Window machine, Both Two End Side Combine U bending machine and Final O Bending Station, pneumatic system, Hydraulic system, electricity control system and etc.
Performance Data of Technology
1. Production line Dimensions (Reference): About L38000*W3500*H2200;
2. Height for work piece: from ground 900mm;
3. Amount of Working Stations: 8;
4. Circle Time: Around 35 seconds / set;

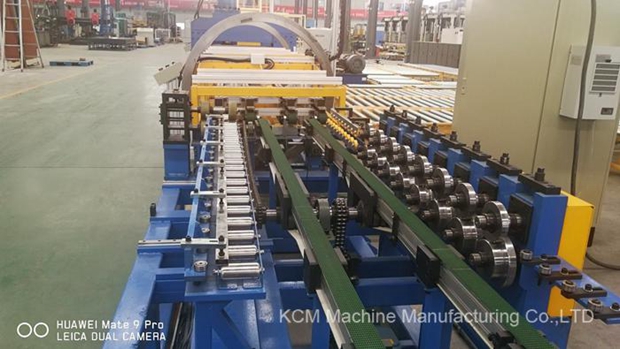

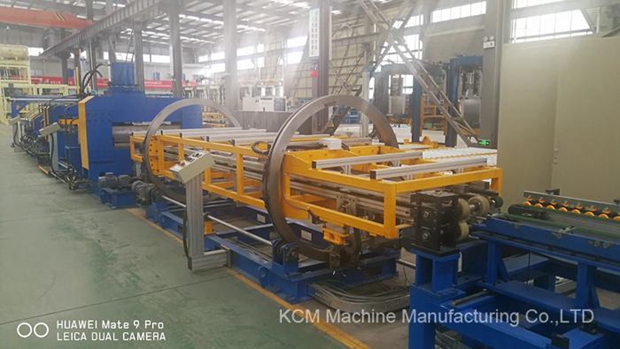

5. Process is as follows: Automatic loading to punching1 and punching2, Then 180°turn over by Rotation Device, Next by bottom flange roller forming, Then Punching for compressor window and another one flanging for compressor window, Finally for 6. Combine U to O-shape bending machine
7. Sheet Material: Cold roller sheet

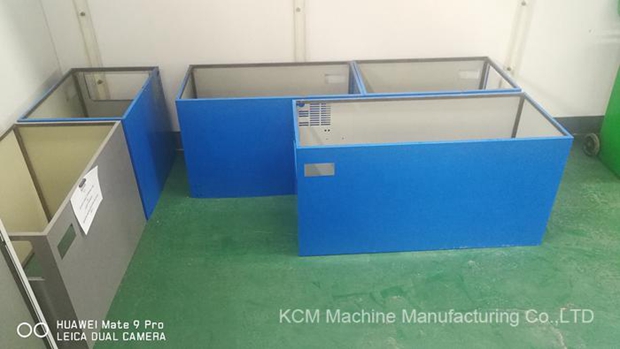

8. Adjustment scope for the product size: L*W*D=(800-1500)*(624)*(750-850)
9. Electric supply: AC380V, 50HZ, the total power of about 75KW;
10. Gas source: 1 / 2 "(0.5-0.65Mpa);
11. Water supply: Industrial water ( 25 litres/minute)
